Product Details:
Name: Fully Welded Ball ValveCatalog: Ball Valve
Certification: API6D-CE-ISO-API607
Contact Details:
Contact Person: Sales Manager
Email: info@seekovalve.com
Tel: 0086-577-67312948
Fax: 0086-577-67312948
Seeko is one of the leading China Fully Welded Ball Valve manufacturers, welcome to inquiry Fully Welded Ball Valve from our factory.

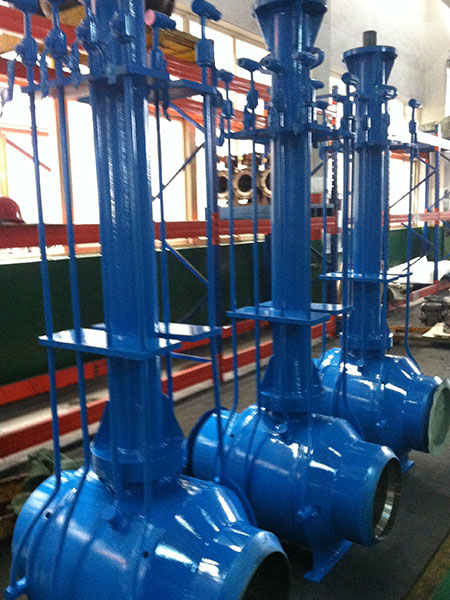

FULLY WELDED BALL VALVE DESCRIPTION
The ball of trunnion mounted configuration is supported by bearing plates hold by the end adaptors. In such a way the pressure loads are transferred to the valve body granting a smooth rotation of the ball with low torque levels and reduced seat seal wear.
On SEEKO Trunnion Mounted Welded Body Ball Valves the potential leak paths are minimized making them suitable for buried installations and in general for gas transportation.
The weight and overall dimensions are optimized by applying forged or shaped design.
They are manufactured in a wide range of sizes and pressure classes from forgings.
BASIC CHARACTERISTICS
API 6D, API6Adesign
Full Bore and Reduced Bore design
Flanged or Welding Ends
Spring loaded floating seats
Bi‐directional sealing
Anti blow‐out stem
Anti static device
Heavy duty bearings
Double Block & Bleed design
Fire safe design
PRODUCT RANGE
Size: 2” to 56”
Pressure Classes: ASME 150# to 2500#
Temperature Range: ‐46°C to 250°C
DESIGN FEATURES
Soft Seating Standard
Delta Ring and PMSS Seats On Request
Self‐relieving Seats Standard
Double Piston Effect Seats On Request
Vent & Drain ports Standard
Emergency sealant injection On Request for6”FB and above
Wetted Areas Overlay On Request
Manual operated or Actuated Standard
Stem Extension On Request
Extended Bonnet On Request
Welded Pups On Request
Wetted or Sealing Areas Overlay On Request
MATERIAL SELECTION
BODY, CLOSURE
– CS (ASTM A105,A182 F11,A182 F22), LTCS (ASTM A350 LF2,LF3,12Mn)
– High strength LTCS (A694 F52, F60, F65)
– Austenitic SS (ASTM A182 F304, F316,F321)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Incoloy 825
– Monel
BODY SEALS / SEAT SEALS
– Viton A FKM O‐ring
– Viton GLT FKM O‐ring
– Viton AED FKM O‐ring
– HNBR AED O‐ring
– FFKM O‐ring
TRIM (SEAT, BALL and STEM)
– CS (ASTM A105), LTCS (ASTM A350 LF2) + ENP0.003”
– High strength LTCS (A694‐F52, F60, F65) + ENP0.003”
– AISI 410 Martensitic SS (ASTM A182 F6a)
– 17-4 PH
– Austenitic SS (ASTM A182 F304, F316)
– Duplex SS 22% Cr (ASTM A182 F51)
– Superduplex SS 25% Cr (ASTM A182 F53/F55)
– 6Mo SS (ASTM A182 F44)
– Inconel 625
– Inconel 718
– Incoloy 825
– Monel
SEAT INSERT
– Viton A/GLT/AED FKM O‐ring
– HNBR
– PTFE / RPTFE
– Nylon / DEVLON V
– PCTFE / KEL‐F
– PEEK
